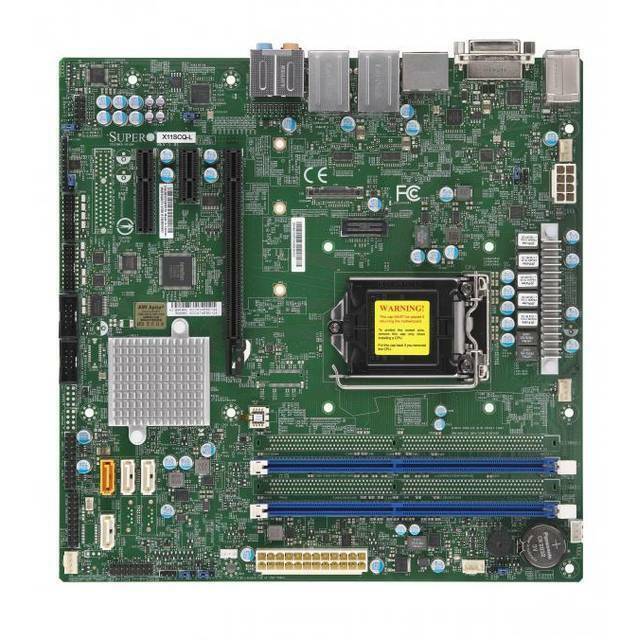

Supermicro X11SCQ-L-O LGA1151/ Intel H310/ DDR4/ SATA3&USB3.1/ A&V&2GbE/

MBD-X11SCQ-L-O Overview

The Supermicro X11SCQ-L motherboard is designed for high performance and versatility.

Processor Support: It supports 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors in an LGA-1151 (Socket H4) configuration with a maximum TDP of 95W.
Memory: The motherboard has 2 DIMM slots that can accommodate up to 32GB of unbuffered non-ECC UDIMM DDR4-2666MHz memory.
Expansion Slots:
- PCIe 3.0 x16
- PCIe 2.0 x4
- PCIe 2.0 x1.
Storage and Connectivity:
- SATA Ports: It features an Intel® H310 controller providing 4 SATA3 (6 Gbps) ports.
- Video Ports: Includes DVI-D, DisplayPort, HDMI 2.0, and eDP (Embedded DisplayPort) options.
- USB Ports: Offers 6 USB 2.0 ports (4 via header, 2 rear) and 4 USB 3.1 Gen1 ports (2 rear Type-A, 2 rear Type-C).
Network Controllers:
- Single LAN with Intel® PHY I219LM LAN controller
- Single LAN with Intel® Ethernet Controller I210-AT.
BIOS Features: Supports ACPI 6.1, SMBIOS 3.1, and UEFI 2.6.
Form Factor: The motherboard is a uATX board with dimensions of 9.6" x 9.6" (24.38cm x 24.38cm).

MBD-X11SCQ-L-O Specification

Mfr Part Number: X11SCQ-L-O
CPU: LGA1151
- Supports 8th Generation Intel Core i7/i5/i3/Pentium/Celeron Processor
- Support up to 95W TDP
Chipset: Intel H310
Memory: 2x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, non-ECC , Unbuffered, Max Capacity of 32GB
Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x4 Slot, 1x PCI-Express 2.0 x1 Slot
SATA: 4x SATA3 Ports
Audio: 7.1 High Definition Audio CODEC
Video: Intel HD Graphics
LAN: Intel PHY I219LM and Intel I210-AT Gigabit Ethernet Controllers
Ports: 6x USB 2.0 Ports (2 rear, 4 via headers), 4x USB 3.1 Ports (Type-C rear), 1xDVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x Embedded DisplayPort, 2x Independent Displays, 2x RJ45 LAN Ports
Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
RoHS Compliant
