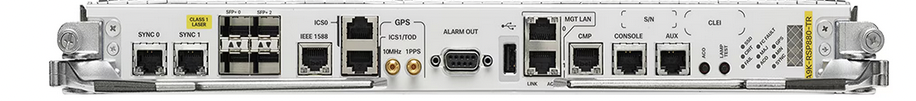

Cisco A9K-RSP880-TR 4x 10G SFP+ 2x GE 16GB RAM Route Switch Processor

Overview

ASR 9000 Route Switch Processor 880 (RSP 880) is the system processor for the Cisco ASR 9010 Router, ASR 9006 Router, and ASR 9904 Router. RSP880-LT is the system processor for ASR 9010, ASR 9006, ASR 9904, ASR 9910 Router and ASR9906 Router. It supports high-density 100 Gigabit Ethernet line cards and provides backward compatibility with the Cisco ASR 9000 Series second family of line cards (Figure 1 and Figure 2). The Cisco ASR 9000 RSP 880 system architecture is designed to accommodate new programmable deployment models and convergence of Layer 2 and Layer 3 services, as required by today’s wireline, Data-Center-Interconnect (DCI), and Radio Access Network (RAN) aggregation applications.

The ASR 9000 RSP 880 brings the time-tested and robust carrier-class capabilities of Cisco IOS^® XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. And it allows each process to run in separate protected memory, including each routing protocol, along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.

Technical Specifications:

• Model Number : A9K-RSP880-TR
• Condition : NEW
• Control of up to seven Cisco ASR 9000 Series switch fabric cards with RSP880-LT
•  ASR 9000 RSP 880 for Packet Transport 16G (product number: A9K-RSP880-TR, A9K-RSP880-LT-TR): 16-GB Error-Correcting Code (ECC)-protected DRAM
•  ASR 9000 RSP 880 for Service Edge 32G (product number: A9K-RSP880-SE, A9K-RSP880-LT-SE): 32-GB ECC-protected DRAM
• MANAGMENT PORTS: 2x Gigabit Ethernet RJ-45
• Network Ports : 2x Gigabit Ethernet RJ-45
• Uplink Ports : 4x 10 Gigabit Ethernet SFP+
•  Solid-state disk: RSP 880 - Two 32-GB SSDs, RSP880-LT – Two 128GB SSD
• 8-GB embedded USB
•  USB 2.0 Type A receptacle Timing System
•  Timing: Two independent clock source connections
•  IEEE 1588 support: Copper 10-Mbps and 100-Mbps RJ-45 Ethernet port GPS
•  ToD (RS-422 and RS-232)
• 1-pps RS-422 or 1.0/2.3 50-ohm RF connector
•   10-MHz in/out 1.0/2.3 50-ohm RF connector Management
•   Two 100/1000BASE-T (RJ-45) LAN management ports
•   One console port
•   One auxiliary port
