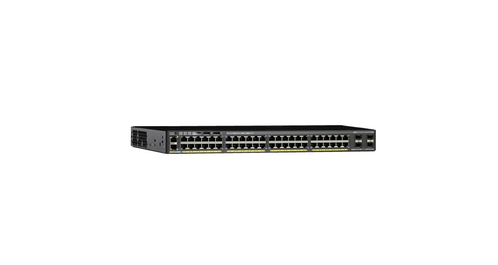

NEW Cisco WS-C2960X-48FPS-L 48x 1GB PoE RJ-45 4x 1GB SFP Switch

(No reviews yet) Write a Review
MPN:
WS-C2960X-48FPS-L
Condition:
New
Shipping:
Free Shipping
$950.00
REQUEST A QUOTE
Frequently bought together:

Description

WS-C2960X-48FPS-L-new Overview

Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.

Quick spec of WS-C2960X-48FPS-L-new

  • Product Code : WS-C2960X-48FPS-L
  • Enclosure Type : Rack-mountable - 1U
  • Feature Set : LAN Base
  • Uplink Interfaces : 4 x 1G SFP
  • Ports : 48 x 10/100/1000 Ethernet Gigabit ports
  • Available PoE Power : 740W
  • Maximum stacking number : 8
  • Stack bandwidth : 80G
  • Forwarding Performance : 107.1Mpps
  • Switching Bandwidth : 216Gbps
  • RAM : 512 MB
  • Flash Memory : 128 MB
  • Dimensions : 44.5 cm x 36.8 cm x 4.5 cm
  • Package Weight : 10.65 Kg

WS-C2960X-48FPS-L-new Specification

  • Enclosure type :Rack-mountable - 1U
  • Ports :48 x 10/100/1000 + 4 x 1G SFP
  • Network management Interface :10/100 Mbps Ethernet (RJ-45)
  • Available PoE Power :740W
  • Forwarding bandwidth(Gbps) :108Gbps
  • Maximum stacking number :8
  • Stack Bandwidth :80 G
  • Forwarding Performance :107.1Mpps
  • Switching bandwidth :216Gbps
  • Maximum active VLANs :1023
  • MAC Address Table Size :16K (default)
  • CPU :APM86392 600MHz dual core
  • RAM :256 MB
  • Flash Memory :64 MB
  • Status Indicators :Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
  • Console ports :USB (Type-B), Ethernet (RJ-45)
  • Stacking cable :Optional
  • Power Redundancy :Option (PWR-RPS2300)
  • Voltage range (Auto) :110V-240V
  • Power Consumption Operational :0.89KVA
  • Width :17.5 Inches (44.5 cm)
  • Depth :14.5 Inches (36.8 cm)
  • Height :1.75 Inches (4.5 cm)
  • Weight :12.9 lb (5.8 Kg)
  • Package Weight :23.48 lb (10.65 Kg)
  • Rack Mounting Kit :optional
  •  MTBF in hours :232,610
  • Compliant Standards :
    •  IEEE 802.1D Spanning Tree Protocol
    •  IEEE 802.1p CoS Prioritization
    •  IEEE 802.1Q VLAN
    •  IEEE 802.1s
    •  IEEE 802.1w
    •  IEEE 802.1X
    •  IEEE 802.1ab (LLDP)
    •  IEEE 802.3ad
    •  IEEE 802.3af and IEEE 802.3at
    •  IEEE 802.3ah (100BASE-X single/multimode fiber only)
    •  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
    •  IEEE 802.3 10BASE-T
    •  IEEE 802.3u 100BASE-TX
    •  IEEE 802.3ab 1000BASE-T
    •  IEEE 802.3z 1000BASE-X
    •  RMON I and II standards
    •  SNMP v1, v2c, and v3
    •  IEEE 802.3az
    •  IEEE 802.1ax
  • System software :IOS LAN BASE
  • license :NERGY-MGT-100-K9, EW-DO-100-DE
  • features :
    • Jumbo Frames
    • VLANS
    • Voice Vlan
    • VTPv2
    • CDPv2
    • LLDP
    • 802.3ad LACP
    • PVST/PVST+
    • 802.1W/802.1S
    • Port Fast/Uplink Fast
    • port CoS Trust and Override
    • Scheduling
    • Priority Queuing
    • Configure CoS Priority Queues
    • Weighted Tail Drop
    • DSCP transparency
  • Network security :
    • SSH, SSL and SCP
    • RADIUS and TACACS+
    • SNMPv3 crypto
    • 802.1x
    • 802.1x Accounting / MIB
    • 802.1x w/ port security
    • 802.1x w/Voice VLAN
    • 802.1x Guest VLAN
    • 802.1x VLAN assignment
    • 802.1x MAC-Auth Bypass
    • BPDU/Root Guard
    • Port Security
    • Private VALN Edge
    • Storm Control
    • Block unknown unicast and multicast
    • IGMP Snooping
    • IGMP Filter/Throttle
  • Management and Troubleshooting :
    • Auto-MDOX
    • TDR
    • UDLD
    • IP SLA Responder
    • layer 2 / IP Traceroute
    • SPAN
    • RSPAN
    • Express Setup
    • Device Manager
    • Cisco Network Assistant
    • Smartports + Advisor
    • Troubleshooting Advisor
    • Drag-and-drop Cisco IOS Upgrade
    • IP Address DHCP
    • Autoinstall with saved configuration
    • Configuration Replace
    • DHCP Auto Image Upgrade
    • DHCP Port Based Allocation
    • Error Disable MIB
  • Operating temperature up to 5000 ft (1500 m) :23ºF to 113ºF (-5ºC to 45ºC)
  • Operating temperature up to 10,000 ft (3000 m) :23ºF to 104ºF (-5ºC to 40ºC)
  • Short-term exception at sea level* :23ºF to 131ºF (-5ºC to 55ºC)
  • Short-term exception up to 5000 feet (1500 m)* :23ºF to 122ºF (-5ºC to 50ºC)
  • Short-term exception up to 10,000 feet (3000 m)* :23ºF to 113ºF (-5ºC to 45ºC)
  • Short-term exception up to 13,000 feet (4000 m)* :23º to 104ºF (-5ºC to 40ºC)
  • Storage temperature up to 15,000 feet (4573 m) :-13º to 158ºF (-25º to 70ºC)
  • Operating altitude :Up to 10,000 Feet (Up to 3000 Meters)
  • Storage altitude :Up to 13,000 (Up to 4000 Meters)
  • Operating relative humidity :10% to 95% noncondensing
  • Storage relative humidity :10% to 95% noncondensing
