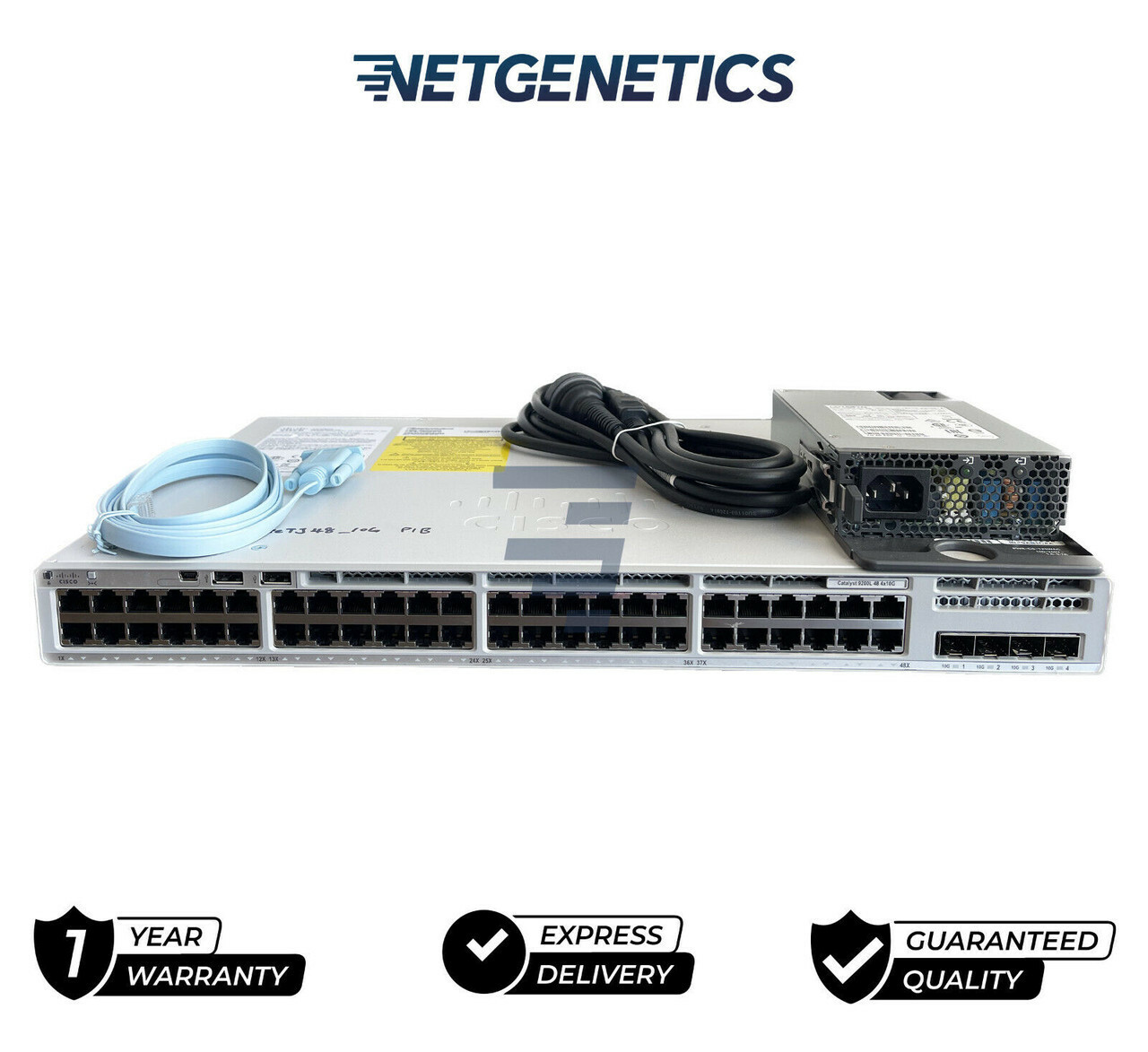

New Cisco C9200-48T-A Catalyst 9200 Series 48x 1GB RJ-45 1x Module Slot Switch
- MPN:
- C9200L-48T-4X-A
- Condition:
- New
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
New Cisco C9200-48T-A Catalyst 9200 Series 48x 1GB RJ-45 1x Module Slot Switch
C9200L-48T-4X-A-Ref Overview
C9200L-48T-4X-A is the Catalyst 9200L 48-port Data 4x10G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Quick spec of C9200L-48T-4X-A-Ref
- Model : C9200L-48T-4X-A
- Downlinks total 10/100/1000 or PoE+ copper ports : 48 ports data
- Uplink configuration : 4x 10G fixed uplinks
- Default primary AC power supply : PWR-C5-125WAC
- Fans : Fixed redundant
- Software : Network Advantage
- Stacking bandwidth : 80 Gbps
- DRAM : 2 GB
- Flash : 4 GB
- Switching capacity : 176 Gbps
- Forwarding rate : 261.9 Mpps
- Chassis Dimensions : 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
C9200L-48T-4X-A-Ref Specification
- Downlinks total 10/100/1000 or PoE+ copper ports :48 ports data
- Uplink configuration :4x 10G fixed uplinks
- Default primary AC power supply :PWR-C5-125WAC
- Fans :Fixed redundant
- Software :Network Advantage
- Chassis Dimensions :1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
- Virtual Networks :1
- Stacking bandwidth :80 Gbps
- Total number of MAC addresses :16,000
- Total number of IPv4 routes (ARP plus learned routes) :11,000 (8,000 direct routes and 3,000 indirect routes)
- IPv4 routing entries :3,000
- IPv6 routing entries :1,500
- Multicast routing scale :1,000
- QoS scale entries :1,000
- ACL scale entries :1,500
- Packet buffer per SKU :6 MB buffers for 24- or 48-port Gigabit Ethernet models
- Flexible NetFlow (FNF) entries :16,000 flows on 24- and 48-port Gigabit Ethernet models
- DRAM :2 GB
- Flash :4 GB
- VLAN IDs :1024
- Total Switched Virtual Interfaces (SVIs) :512
- Jumbo frames :9198 bytes
- Wireless bandwidth per switch :N/A
- Switching capacity :176 Gbps
- Forwarding rate :261.9 Mpps
- Mean time between failures (hours) :503,400
