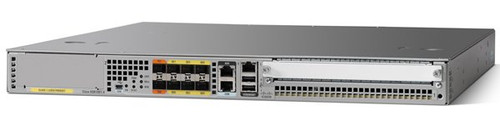

NEW Cisco ASR1001X-5G-K9 6x 1GB SFP 2x 10GB SFP+ 1x NIM 1x SPA Router

Quick spec of ASR1001X-5G-K9-NEW

• Product Code :  ASR1001X-5G-K9
• Rack Height :  1RU
• System Bandwidth :  2.5G (default) / 5G, 10G, 20G (upgrade)
• Router Processor (RP) :  Quad-core 2.13Ghz processor
• Build-in Gigabit Ethernet port :  6 x SFP ports, 2 x SFP+ ports
• Redundancy :  Software (license purchase separately)
• SIP and Ethernet line card :  Integrated in chassis; not upgradable
• Embedded hardware-based encryption :  up to 8-Gbps crypto support throughput
• Rack-mounting :  19-inch
• DRAM Memory :  4 GB
• Flash Memory :  8 GB
• Shared port adapters :  1 SPA slot
• External USB flash memory :  1-GB USB flash-memory support

ASR1001X-5G-K9-NEW Specification

• Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. :
  • Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight:
  •   25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated.
• Default memory :8-GB DRAM shared across route processor, ESP, and SIP
• Number of SIPs or Ethernet line cards supported :Integrated in chassis
• Shared port adapters :1 single-height SPA slot
• Ethernet port adapters :N/A
• Cisco ASR 1000 Series ESP :Integrated in chassis
• Route processor :Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor
• Redundancy :Software: Yes
• Built-in Gigabit Ethernet ports :Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports
• Built-in 10 Gigabit Ethernet port :Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.
• Network interface module :Yes
• Cisco ASR 1000 Series :Cisco ASR 1001-X
• ESP support :Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps
• ESP bandwidth :2.5 to 20 Gbps
• ESP memory :Share the same control memory on route processor
• SIPs and Ethernet line cards :Integrated in chassis; not upgradable
• Embedded hardware-based encryption :Yes: Up to 8-Gbps crypto support throughput
• Minimum Cisco IOS XE Software release :Cisco IOS XE Software Release 3.12.0
• Rack-mounting :Yes: 19-inch
• Wall-mounting :No
• External USB flash memory :1-GB USB flash-memory support
• Redundant power supply :Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported.
• Power input :Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal)
• Power consumption :
  •   Maximum (DC): 242W
  •   Maximum (AC): 250W
  •   Maximum (out): 250W
• Airflow :Front-to-back
• Operating temperature (nominal) :32 to 104°F (0 to 40°C)
• Operating temperature (short-term) :32 to 122°F (0 to 50°C)
• Operating humidity (nominal) (relative humidity) :10 to 85%
• Operating humidity (short-term) :5 to 90%
• Storage temperature :-40 to 150°F (-40 to 70°C)
• Storage humidity (relative humidity) :5 to 95%
• Operating altitude :-500 to 10,000 feet (152 to 3048 meters)
• Network Equipment Building Standards (NEBS) :GR-1089 and GR-63 (in progress)
• EMC standards :
  •   FCC 47 CFR Part 15 Class A
  •   VCCI Class A
  •   AS/NSZ Class A
  •   ICES-003 Class A
  •   EN55022/CISPR 22 Information Technology Equipment (Emissions)
  •   EN55024/CISPR 24 Information Technology Equipment (Immunity)
  •   EN300 386 Telecommunications Network Equipment
  •   (EMC)
  •   EN50082-1/EN61000-6-1 Generic Immunity Standard
• Safety Standard :UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1
