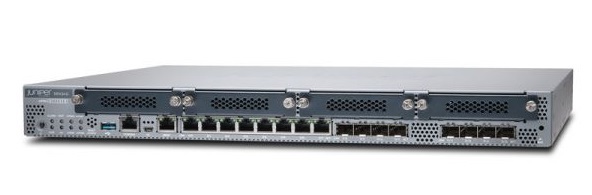

Juniper SRX340-SYS-JB 3 Gbps Services Gateway w/ Junos Software Base

Description

SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching).

Junos OS software version tested

Junos OS 15.1X49

Firewall performance (max)

3 Gbps

IPS performance

250 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

500 Mbps

Maximum concurrent sessions

256,000

New sessions/second (sustained, TCP, 3-way)

10,000

Maximum security policies

2000

Maximum security intelligence data feed entries in firewall rules database

N/A

Total onboard ports

16x1GbE

Onboard RJ-45 ports

8x1GbE

Onboard small form-factor pluggable (SFP) transceiver ports

8x1GbE

MACsec-capable ports

16x1GbE

Out-of-band (OOB) management ports

1x1GbE

Mini PIM (WAN) slots

4

Console (RJ-45 + miniUSB)

1

USB 3.0 ports (type A)

1

Optional PoE+ ports

0

System memory (RAM)

4 GB

Storage (flash)

8 GB

SSD slots

1

Form factor

1U

Size (WxHxD)

17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)

Redundant PSU

No

Power supply

AC (internal)

Maximum PoE power

N/A

Average power consumption

122 W

Average heat dissipation

420 BTU/h

Maximum current consumption

1.496 A

Acoustic noise level

45.5 dBA

Airflow/cooling

Front to back

Operational temperature

32° to 104° F (0° to 40° C)

Nonoperational temperature

4° to 158° F (-20° to 70° C)

Operating humidity

10% to 90% noncondensing

Nonoperating humidity

5% to 95% noncondensing
