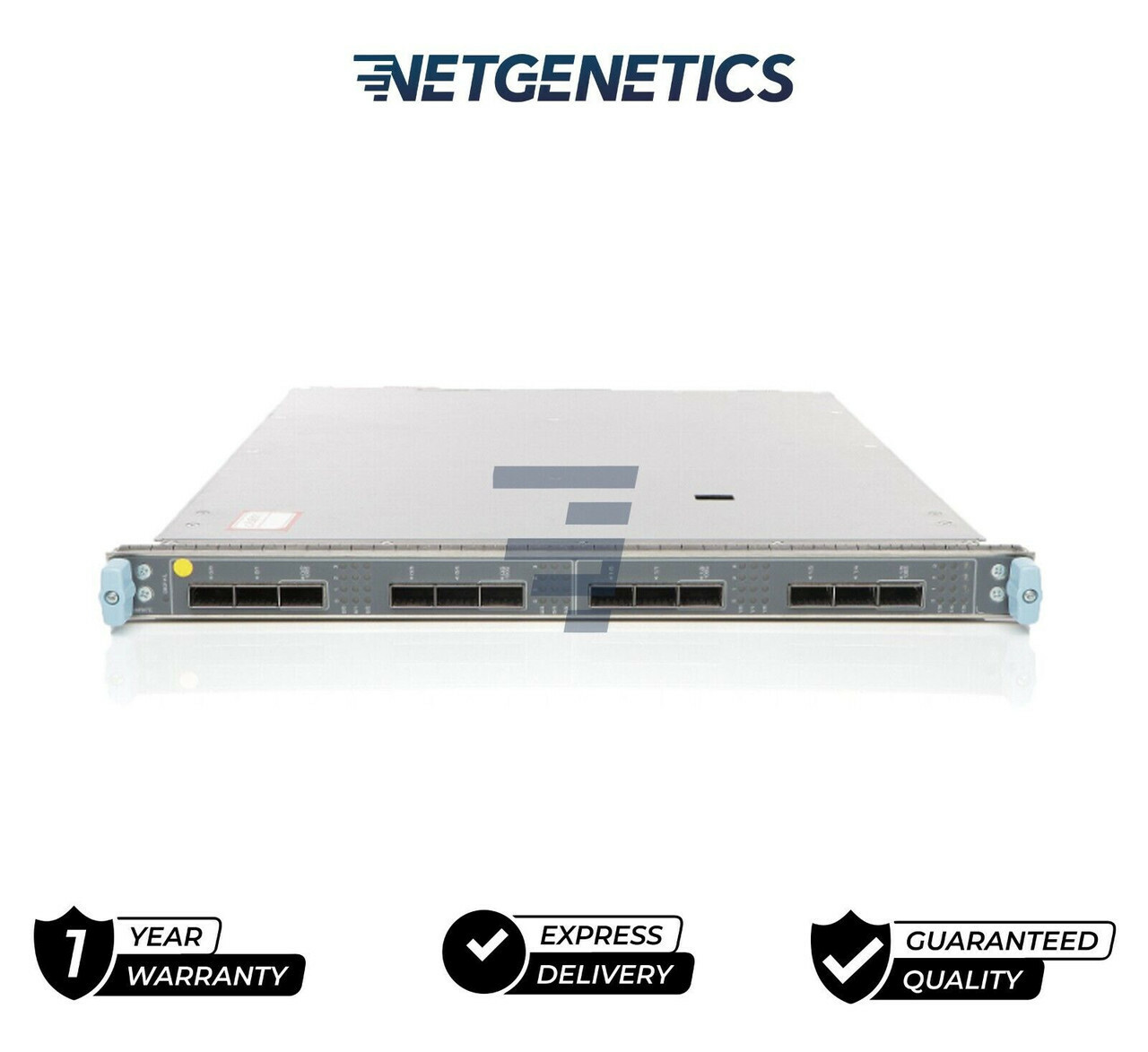

Juniper MPC7E-MRATE-RTU Multirate Port Line Card

(No reviews yet) Write a Review
MPN:
MPC7E-MRATE
Condition:
New
Shipping:
Calculated at Checkout
  • 12xQSFP+/QSFP28 multirate port line card, full scale L2/L2.5 features, reduced scale L3,up to 2M routes in FIB,up to 6M routes in RIB, and up to 32 L3VPN instances per card. 4 ports out of 12 support QSFP28. Licensed for 6 ports The Juniper MPC7E-MRATE is a member of the Juniper MX Series of network routers and associated products. The Juniper MX Series is a collection of routing platforms that provides the user with industry-leading density, system capacity, security, and performance with longevity that is unmatched.
  • 12xQSFP+/QSFP28 multirate port line card, full scale L2/L2.5 features, reduced scale L3,up to 2M routes in FIB,up to 6M routes in RIB, and up to 32 L3VPN instances per card. 4 ports out of 12 support QSFP28. Licensed for 6 ports The Juniper MPC7E-MRATE is a member of the Juniper MX Series of network routers and associated products. The Juniper MX Series is a collection of routing platforms that provides the user with industry-leading density, system capacity, security, and performance with longevity that is unmatched.
  • 12xQSFP+/QSFP28 multirate port line card, full scale L2/L2.5 features, reduced scale L3,up to 2M routes in FIB,up to 6M routes in RIB, and up to 32 L3VPN instances per card. 4 ports out of 12 support QSFP28. Licensed for 6 ports The Juniper MPC7E-MRATE is a member of the Juniper MX Series of network routers and associated products. The Juniper MX Series is a collection of routing platforms that provides the user with industry-leading density, system capacity, security, and performance with longevity that is unmatched.
$9,177.00
REQUEST A QUOTE
Frequently bought together:

Description

Juniper MPC7E-MRATE-RTU Multirate Port Line Card

MPC7E-MRATE-New Overview

12x QSFP+/QSFP28 multirate port line card, includes full scale L2/L2.5 features,reduced scale L3,up to 2M routes in FIB,up to 6M routes in RIB, and up to 32 L3VPN instances per card.4 ports out of 12 support QSFP 28. Optics sold separately.

Specifications

  • Port Configuration:
  • 12x QSFP+/QSFP28 Ports: These ports support various speeds, including 10-Gigabit Ethernet, 40-Gigabit Ethernet, and 100-Gigabit Ethernet.
  • Rate Selectability: You can configure different combinations of port speeds, ensuring flexibility for your network requirements.
  • Four 100-Gigabit Ethernet Ports: Specifically, port numbers 0/2, 0/5, 1/2, and 1/5 are dedicated to 100-Gigabit Ethernet connections.
  • Throughput:
  • Line-rate throughput of up to 480 Gbps on MX240, MX480, and MX960 routers.
  • On MX2000 routers with SFB, it achieves up to 400 Gbps, and up to 430 Gbps on MX2000 routers with SFB2.
  • Hardware Scalability:
  • Equipped with Junos Trio chipsets, enhancing scaling for bandwidth, subscribers, and services.
  • Supports maximum transmission units (MTUs) ranging from 256 bytes through 16,000 bytes for transit traffic and 256 bytes through 9,500 bytes for host-bound packets.
  • Environmental Considerations:
  • Operates at an ambient temperature of up to 40°C and at any altitude on MX960 routers.
  • At sea level, all MPC slots can host the MPC7E-MRATE line card at temperatures of up to 55°C. However, at an ambient temperature above 55°C, slot 11 cannot accommodate the MPC7E-MRATE line card.
  • Software Features:
  • Supports rate selectability at the port level.
  • By default, the ports are configured as 10-Gigabit Ethernet ports.

Datasheet


View AllClose

Videos

View AllClose

Warranty Information

Warranty: 365 days
View AllClose
