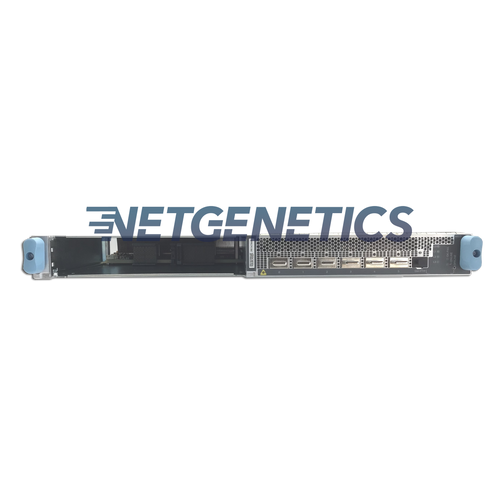

Juniper JNP10003-LC2103 MX10003 MPC Multi-Rate Line Card MX10003

Juniper JNP10003-LC2103 MX10003 MPC Multi-Rate Line Card MX10003

The JNP10003-LC2103 is a line card designed for the Juniper Networks PTX10003 Packet Transport Router, part of the PTX series of high-performance routers used in large-scale service provider and enterprise networks.This line card provides the PTX10003 router with the high-density, high-throughput capabilities required for modern networking environments, making it suitable for handling demanding traffic loads in both core and edge network deployments.

Overview

• Model: JNP10003-LC2103
• Device Type: Line card for PTX10003 Router
• Purpose: High-density, high-capacity line card for routing and switching in core and edge networks.
• Port Configuration
• Port Density:
• 12 x 100GbE (QSFP28) ports
• 12 x 40GbE (QSFP+) ports
• Ports are configurable to support a combination of 100GbE and 40GbE interfaces depending on the deployment requirements.
• Performance and Capacity
• Total Throughput: Up to 3.6 Tbps (terabits per second)
• Forwarding Rate: Capable of forwarding up to 5 billion packets per second (Bpps) depending on the configuration.
• Buffer Size: 50ms deep buffer per port for handling traffic spikes and ensuring consistent performance.
• Latency: Ultra-low latency, optimized for carrier-grade performance.
• Compatibility
• Compatible Chassis: PTX10003
• Compatibility: Designed to work seamlessly with other components of the PTX10003 router, including control boards and switch fabric modules.
• Redundancy and Reliability
• High Availability: Supports full redundancy and high availability with the PTX10003 chassis.
• Hot-Swappable: The line card is hot-swappable, allowing for replacement or upgrades without impacting the router’s operation.
• Power and Cooling
• Power Consumption: Designed to be energy efficient with low power consumption per Gbps of throughput.
• Cooling: Works with the PTX10003 chassis' cooling system, optimized for efficient thermal management.
• Advanced Features
• Traffic Management: Supports advanced traffic management features including MPLS, segment routing, and QoS.
• Security: Integrated support for MACsec encryption on selected ports to ensure secure data transmission.
• Automation and Programmability: Supports Junos OS with automation and programmability features such as Junos Automation Scripts, NETCONF, and YANG.
• Environmental Specifications
• Operating Temperature: Designed to operate within the standard temperature range supported by the PTX10003 chassis.
• Humidity: Supports operation in standard humidity conditions as defined by the chassis' specifications.
• Compliance: Meets or exceeds industry standards for data center and carrier-grade equipment.
• Use Cases
• Core and Edge Routing: Ideal for high-capacity core and edge routing in service provider networks.
• Data Centers: Suitable for high-performance data center interconnect and aggregation applications.
• Carrier Ethernet: Optimized for Carrier Ethernet deployments with high throughput and low latency requirements.
