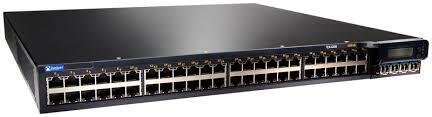

Juniper EX4200-48PX EX4200 48-Port Gigabit PoE+ Switch

Overview

The Juniper Networks® EX4200 line of Ethernet switches with Virtual Chassis technology combine the high availability (HA) and carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus and branch office environments. Offering a full suite of Layer 2 and Layer 3 switching capabilities as part of the base software, the EX4200 satisfies a variety of high-performance applications, including branch, campus and data center access deployments as well as Gigabit Ethernet (GbE) aggregation deployments. A single 24-port or 48-port switch can be deployed initially; as requirements grow, Juniper Networks Virtual Chassis technology allows up to 10 EX4200 switches to be interconnected over a 128 gigabit-per-second (Gbps) backplane and managed as a single device, delivering a scalable, pay-as-yougrow solution for expanding network environments. Flexible Gigabit Ethernet (GbE) and 10-Gigabit Ethernet (10GbE) uplink options enable high-speed connectivity to aggregation- or core-layer switches which connect multiple floors or buildings. All EX4200 switches include HA features such as redundant, hot-swappable internal power supplies and field-replaceable, multi-blower fan trays to ensure maximum uptime. In addition, the base EX4200 partial PoE switch models offer Class 3 Power over Ethernet (PoE), delivering up to 18.6 watts on the first eight ports to support networked devices such as telephones, video cameras and wireless LAN (WLAN) access points for low-density converged networks. Full PoE options delivering up to 18.6 watts on all 24 or 48 ports are also available, making them ideal for highdensity IP telephony deployments. Furthermore, PoE+ models deliver up to 30 watts of standards-based 802.3at PoE+ on 24 or 48 ports making them ideal for all PoE applications including campus deployments with 802.11n wireless access points.

Specifications for the EX4200-48PX

Model: Juniper EX4200-48PX

Port Configuration:

• • • 48x 1GB PoE+ RJ-45 ports: These ports support Power over Ethernet (PoE+) and can power devices such as IP phones, wireless access points, or security cameras.
    • Expansion Module Slot: The switch features an expansion module slot for additional flexibility.

Power over Ethernet (PoE):

• • • Partial PoE: The base EX4200 models offer Class 3 PoE on the first eight ports, delivering up to 18.6 watts per port for low-density converged networks.
    • Full PoE: Options are available for full PoE on all 24 or 48 ports, making them ideal for high-density IP telephony deployments.
    • PoE+: PoE+ models deliver up to 30 watts of standards-based 802.3at PoE+ on 24 or 48 ports, suitable for all PoE applications including 802.11n wireless access points.

Scalability and Management:

• • • Virtual Chassis Technology: Juniper Networks Virtual Chassis technology allows up to 10 EX4200 switches to be interconnected over a 128 Gbps backplane, managed as a single device.
    • High Availability (HA): Redundant, hot-swappable internal power supplies and field-replaceable fan trays ensure maximum uptime.

Performance:

• • • Data Rate: Up to 1 Gbps per port (full duplex).
    • Applications: Suitable for data center, campus, and branch office environments.
