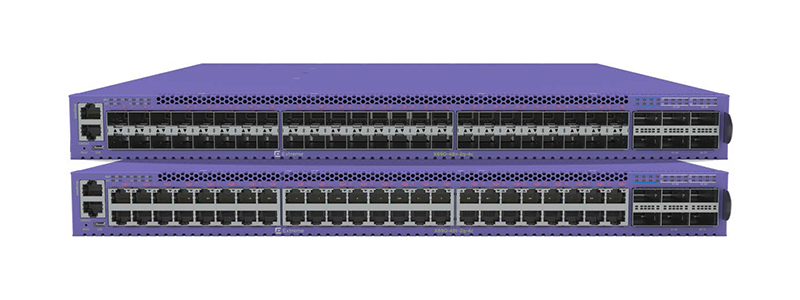

NEW Extreme 17350 X690-48x-2q-4c 48x 10GB SFP+ 2x 40GB QSFP+ 4x QSFP28 Switch

17350 X690 Overview

High-Density, 10Gb Enterprise LAN and Aggregation Switching The X690 Series products are high-density, purpose-built 10Gb/100Gb switches designed for high-performance enterprise and aggregation applications. The X690 can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb, all in a compact 1RU form factor. This enables the X690 to be flexibly deployed in either Enterprise LAN or high-density top of rack applications. The X690 can also serve as the controlling aggregation switch within Extreme's
Extended Edge Switching solution

X690-48x-2q-4c Specs

• 48 x 1Gb/10Gb SFP+ ports
• 2 x 10Gb/40Gb QSFP+ ports
• Up to 4 x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports

Family of 10Gb/100Gb Switches with Advanced Enterprise Capabilities

• Full featured ExtremeXOS operating system with advanced features supporting switching, routing, SDN, and VXLAN
• Controlling aggregation switch for V300 and V400 edge devices with Extreme's Extended Edge Switching
• High-density 10Gb aggregation and leaf applications
• Non-blocking 1.76 Tbps switching capacity per system

Ease of Use — Flexible Management Options

• ExtremeCloud IQ - Site Engine application support
• Advanced command line interface
• Zero Touch Provisioning (ZTP+)
• Integrated web based management application

Flexible System Configurations

• Wide range of port speeds from 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb
• Fiber SFP+ and copper 10GBASE-T models
• Hot-swappable modular power and fans
• AC and DC power supply options
• Front to Back and Back to Front airflow options
• Redundan

View Datasheet for X690 Series
