Dell N1548P N1500 Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ EMC Switch

(No reviews yet) Write a Review
MPN:
Dell N1548P
Condition:
Refurbished
Shipping:
Calculated at Checkout
  • Dell N1548P N1500 Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ EMC Switch
  • The Dell N1548P N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via a 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address.
$599.00
REQUEST A QUOTE
Frequently bought together:

Description

Dell N1548P N1500 Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ EMC Switch

Overview



The Dell EMC PowerSwitch N1548P is a managed Layer 3 (L3) network switch designed for high-density networking, particularly in settings that require Power-over-Ethernet (PoE) capabilities. It features 48 RJ-45 Gigabit Ethernet (10/100/1000 Mbps) PoE+ ports, each capable of delivering up to 30.8 watts to connected devices. Additionally, it offers four 10GbE SFP+ uplink ports for higher-speed connections and supports stacking of up to four units, allowing management of up to 200 1GbE ports from a single IP address.

With a switching capacity of 176 Gbps and a forwarding rate of 164 Mpps, the N1548P can handle demanding data loads and unexpected traffic spikes. Its design is energy-efficient, featuring 80 Plus-certified power supplies, redundant variable-speed cooling fans, and support for Energy-Efficient Ethernet (EEE), which reduces power consumption on inactive ports​. The switch's compact 1U form factor (dimensions: 1.7 x 17.3 x 15.2 inches) and compatibility with Dell's networking OS allow easy deployment and configuration, with options for command-line (CLI) and graphical interfaces (GUI). It also includes USB auto-configuration, making it suitable for enterprises looking to scale their networks efficiently

Specifications



  • Type: Managed Layer 3 Gigabit Ethernet switch
  • Ports:
  • 48 RJ-45 Gigabit Ethernet (10/100/1000 Mbps) PoE+ ports, supporting up to 30.8 watts per port
  • 4 dedicated 10GbE SFP+ uplink ports
  • Switching Capacity: 176 Gbps full duplex
  • Forwarding Rate: 164 million packets per second (Mpps)
  • Stacking:
  • Supports stacking of up to 4 units
  • Stacking bandwidth of 40 Gbps (full duplex), managing up to 200 1GbE ports from one IP address
  • Power:
  • Integrated 600W power supply, 80 Plus certified for energy efficiency
  • Redundant, variable-speed fans
  • Maximum power consumption: 1704 watts for PoE configurations
  • Memory:
  • 1GB CPU memory, 256MB flash memory, 1.5MB packet buffer
  • Layer 3 Features:
  • Supports 256 static and dynamic IPv4 routes
  • Supports 128 VLAN routing interfaces and up to 512 VLANs
  • Environmental:
  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Storage temperature: -40°C to 65°C (-40°F to 149°F)
  • Humidity tolerance: 95% operational, 85% storage
  • Compliance and Standards:
  • IEEE standards including 802.1Q VLAN tagging, 802.3at PoE+, and 802.1X network access control
  • Management:
  • CLI and GUI management interfaces
  • USB auto-configuration support for rapid deployment
  • Part Number : N1548P
  • Condition : Seller refurbished

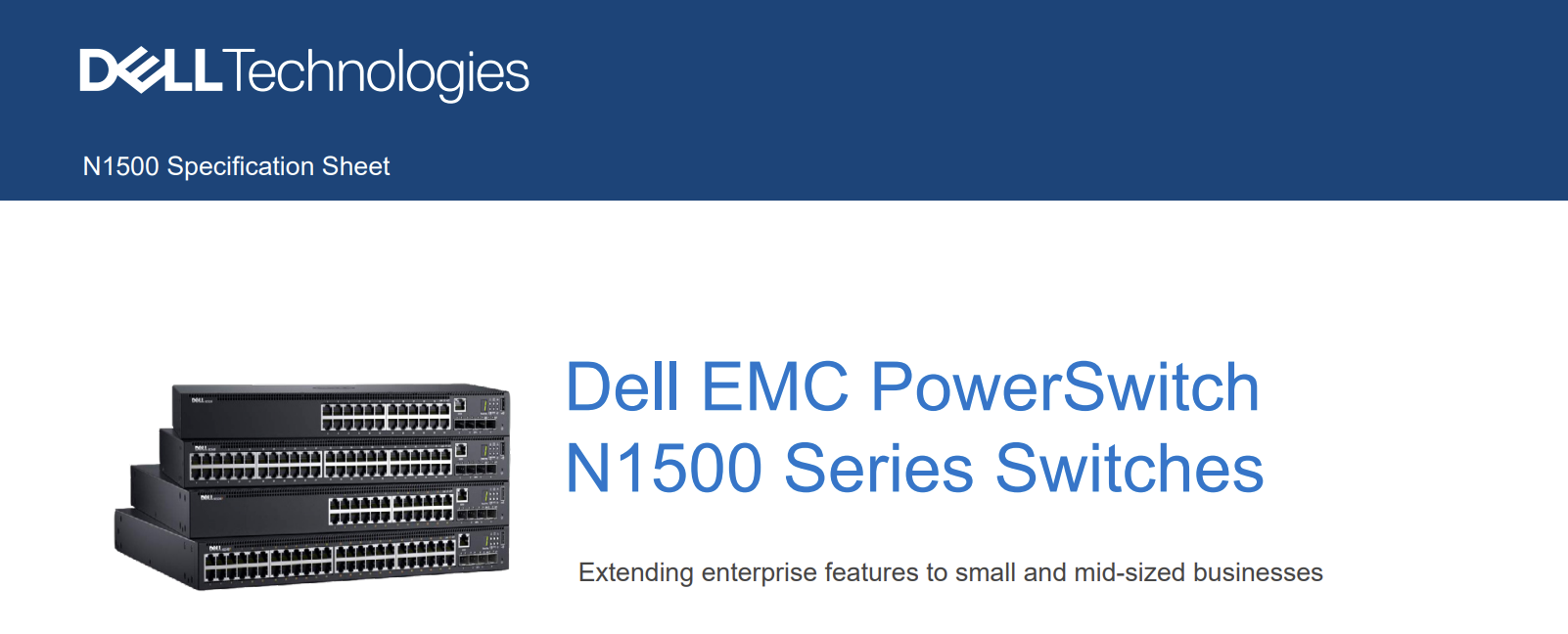

Datasheet

More information on this Dell N1548P

Included

  • One  Refurbished Dell N1548P N1500 Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ EMC Switch
  • One  Power Cord Included notched
  • One   Set of Rackmount ears Brackets Included

Not Included

  • Any special softwware or OS other than what is preloaded on the unit. No manuals are included.
  • Transceiver or network modules are not Included
