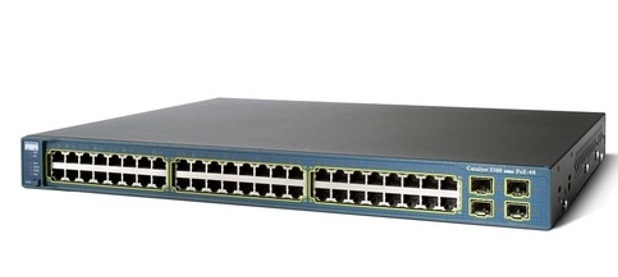

Cisco WS-C3560G-48PS-S Catalyst 3560G Gigabit POE Switch

Overview

The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services. The Cisco Catalyst 3560 is part of a larger and more scalable family of Cisco Catalyst switches that includes the Cisco Catalyst 3560-E Series switches, the Cisco Catalyst 3750 and 3750-E Series switches with Cisco StackWise™ technology, and the Cisco Catalyst 4500 and Catalyst 6500 modular switches. United by Cisco IOS® Software, the entire family offers industry-leading availability, integrated security, optimized delivery, and manageability.

Specifications for the WS-C3560G-48PS-S

Model: Cisco WS-C3560G-48PS-S

Port Configuration:

• • • 48x 10/100/1000 Ethernet ports: These ports support Gigabit Ethernet connections.
    • 4x SFP-based Gigabit Ethernet ports: These Small Form-Factor Pluggable (SFP) ports allow for fiber-optic connections or additional Gigabit Ethernet connectivity.

Power over Ethernet (PoE):

• • • IEEE 802.3af and Cisco prestandard PoE: The switch provides power to connected devices such as IP phones, wireless access points, and surveillance cameras.
    • PoE Budget: The switch has a PoE budget of 370W.

Form Factor:

• • • 1 Rack Unit (RU) fixed configuration, multilayer switch.

Intelligent Services:

• • • Enterprise-class intelligent services delivered to the network edge.
    • Supports features like QoS, rate limiting, access control lists, multicast management, and high-performance IP routing.

Software Options:

• • • Comes with either the Standard Multilayer Software Image (SMI) or the Enhanced Image (EMI) installed.
    • Basic RIP and static routing are included in SMI, while EMI provides advanced IP routing capabilities.

Stacking Capability:

• • • Can be stacked using Cisco GigaStack GBICs or standard 1000BASE-X GBICs for aggregating multiple switches and servers.

Datasheet
