Description

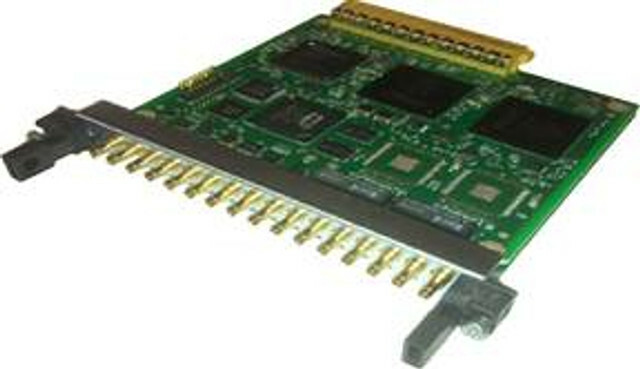

Cisco SPA-4XT3/E3 4-Port Clear Channel T3/E3 Shared Port Adapter

Overview

The Cisco Clear Channel T3/E3 SPAs Version 2 are designed to provide direct connectivity to T3/E3 lines for full duplex communications at the T3 rate of 44.736 MHz or E3 rate of 34.368 MHz. They are available in 2- and 4-port
options. The ports are configurable as either all T3 or all E3. To support the widest range of operational environments and to offer the greatest flexibility in provisioning clear channel T3/E3 connections, the Cisco Clear Channel T3/E3 SPAs Version 2 take a groundbreaking step and bring together proprietary subrate and scrambling features of T3/E3 DSU vendors Quick Eagle Networks (formerly Digital Link), Larscom, ADC Kentrox, Adtran, and Verilink. Subrate support in the Cisco Clear Channel T3/E3 SPAs Version 2 maximizes the application of these products in service provider environments for tiered T3 services. By simultaneously supporting interoperability with a wide range of third-party DSU vendors, the Cisco Clear Channel T3/E3 SPAs Version 2 offer the flexibility to support installed equipment without committing customers to a proprietary solution.
The Cisco Clear Channel T3/E3 SPAs Version 2 are hot-swappable and support service-transparent online insertion and removal (OIR), allowing removal of the SPA without affecting the interface processor and other SPAs.

Specifications

The Cisco SPA-4XT3/E3 4-Port Clear Channel T3/E3 Shared Port Adapter is a network interface module designed for high-speed connectivity.

Overview: The Cisco SPA-4XT3/E3 is part of the Clear Channel T3/E3 Shared Port Adapters (SPAs). These SPAs offer direct connectivity to T3/E3 lines for full-duplex communications at the T3 rate of 44.736 MHz or E3 rate of 34.368 MHz. They are available in both 2-port and 4-port options. The ports can be configured as either all T3 or all E3.

Features and Benefits:

- High Density: The SPA-4XT3/E3 provides four T3/E3 ports in a single module, allowing efficient use of rack space.
- Configurability: The ports can be set up as either all T3 or all E3, providing flexibility based on your network requirements.
- Subrate Support: The SPA-4XT3/E3 brings together proprietary subrate and scrambling features from various T3/E3 DSU vendors, maximizing its application in service provider environments for tiered T3 services.
- I-Flex Design: The Cisco I-Flex approach combines SPAs and SPA interface processors (SIPs), enabling service prioritization for data, voice, and video services. It also enhances speed-to-service revenue while reducing overall cost of ownership.
