Cisco NIM-2MFT-T1/E1 V03 2 Port WAN Voice Module 73-14505-05 IP9IAWBCAA

(No reviews yet) Write a Review

MPN:

NIM-2MFT-T1/E1

Condition:

New

Shipping:

Calculated at Checkout

Description
Contact

Description

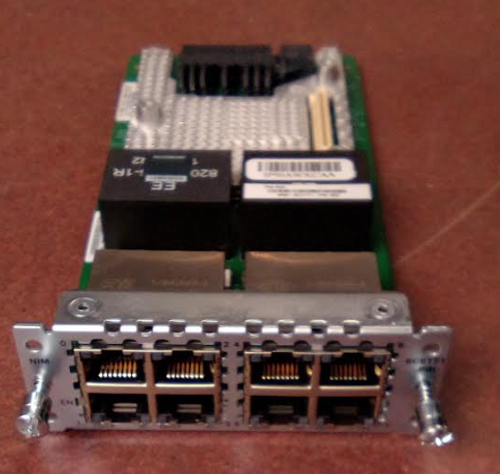

NIM-2MFT-T1/E1-New Overview

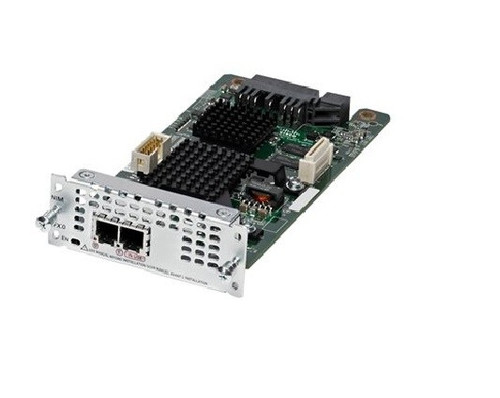

The Cisco® Fourth-Generation 1-, 2-, 4-, and 8-Port T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4000 Integrated Services Routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide superior flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.

Quick spec of NIM-2MFT-T1/E1-New

Model : NIM-2MFT-T1/E1
Serial data (channel-group*) : 2 per port
E1 unframed G.703 : Not supported
Voice channel associated signaling (CAS) (ds0-group**) : 24 per port (T1) 31 per port (E1) 1 per timeslot
PRI (pri-group***) : 1 per port
Drop and insert (tdm-group****) : 24 per port (T1) 31 per port (E1) 1 per timeslot
Dimensions (H x W x D) : 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

NIM-2MFT-T1/E1-New Specification

Serial data (channel-group) :2 per port
E1 unframed G.703 :Not supported
Voice channel associated signaling (CAS) (ds0-group) :24 per port (T1) 31 per port (E1) 1 per timeslot
PRI (pri-group) :1 per port
Drop and insert (tdm-group) :24 per port (T1) 31 per port (E1) 1 per timeslot
Transmit bit rate :1.544 Mbps ±50 bps/32 ppm
Receive bit rate :1.544 Mbps ±50 bps/32 ppm
Line code :Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
AMI ones density :Enforced for n x 56-kbps channels
Framing format :D4 (Super Frame [SF]) and Extended Super Frame (ESF)
Output level (line build-out [LBO]) :0, -7.5 or -15 dB
Input level :+1 dB0 down to -24 dB0
Data-terminal-equipment (DTE) interface (WIC mode) :Fractional service
DTE interface (VIC mode) :G.704 or structured
Data-communications-equipment (DCE) interface :G.704 or structured
Transmit bit rate :2.048 Mbps ±100 bps/50 ppm
Receive bit rate :2.048 Mbps ±100 bps/50 ppm
Data rate :1.984 Mbps (framed mode) per E1 port
Clocking :Internal and loop (recovered from network)
E1 national bits :Fixed (nonconfigurable)
Encoding :High-density bipolar three (HDB3)
DTE interface (WIC mode) :Fractional service
DTE interface (VIC mode) :G.704 or structured
DCE interface :G.704 or structured
Dimensions (H x W x D) :1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental :
- Operating temperature: 0 to 50°C (32 to 122°F)
- Storage temperature: -20 to +65°C (-4 to 148°F)
- Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list) :
- TIA-968-A
- CS-03
- Jate
- ANSI T1.403
E1 Compliance (partial list) :
- TBR4, TBR12, and TBR13
- ITU-T G.703, G.704, G.823, and I.431
- S016 (Australia)
Weight :0.42 lb (191g)
