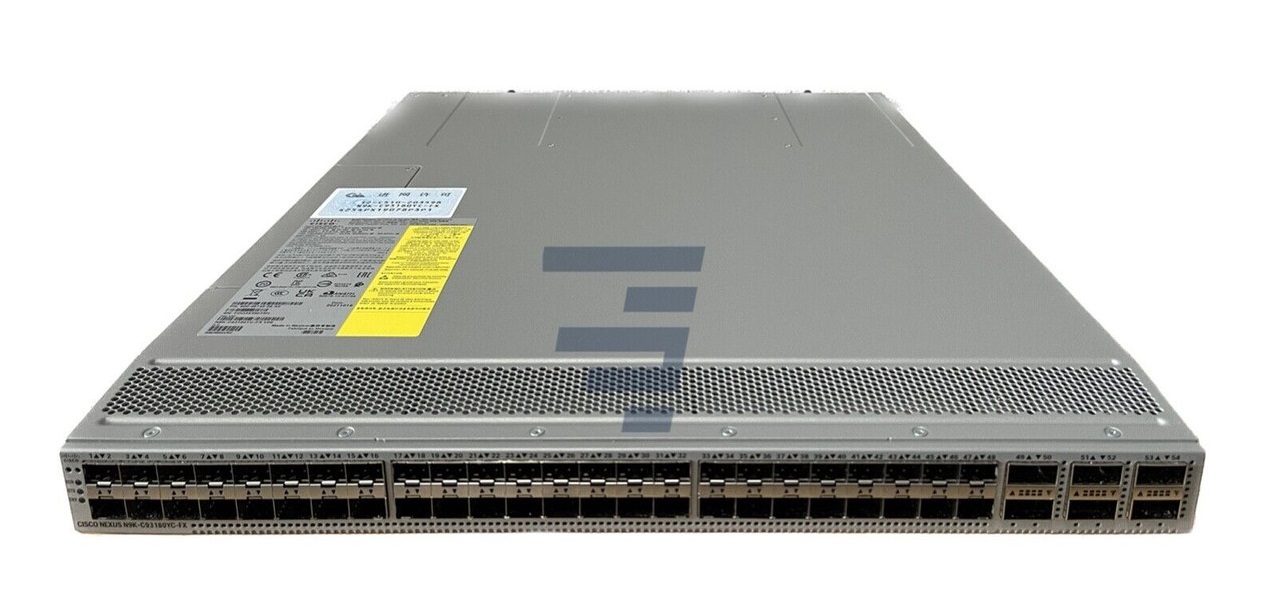

Quick spec of N9K-C93180YC-FX

• SKU : N9K-C93180YC-FX
• Ports : 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds : 1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel
• CPU : 6 cores
• System memory : Up to 32 GB
• SSD drive : 128 GB
• System buffer : 40 MB
• Typical power (AC/DC) : 260W
• USB ports : 1
• RS-232 serial ports : 1

N9K-C93180YC-FX Specification

• Ports :48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds :1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel
• CPU :6 cores
• System memory :Up to 32 GB
• SSD drive :128 GB
• System buffer :40 MB
• Management ports :1 RJ-45 port L1 and L2 ports are unused
• USB ports :1
• RS-232 serial ports :1
• Power supplies (up to 2) :500W AC, 930W DC, or 1200W HVAC/HVDC
• Typical power (AC/DC) :260W
• Maximum power (AC/DC)* :425W
• Input voltage (AC) :100 to 240V
• Input voltage (High-Voltage AC [HVAC]) :200 to 277V
• Input voltage (DC) :–48 to –60V
• Input voltage (High-Voltage DC [HVDC]) :–240 to –380V
• Frequency (AC) :50 to 60 Hz
• Fans :4
• Airflow :Port-side intake and exhaust
• Physical dimensions (H x W x D) :1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
• Acoustics :57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed
• RoHS compliance :Yes
• MTBF :238,470 hours
• Operating temperature :32 to 104°F (0 to 40°C)
• Nonoperating (storage) temperature :–40 to 158°F (–40 to 70°C)
• Humidity :5 to 95% (noncondensing)
• Altitude :0 to 13,123 ft (0 to 4000m)
