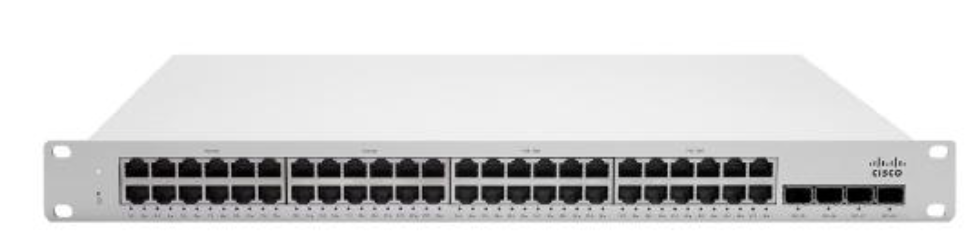

Cisco Meraki MS250-48LP-HW 48x 1GB PoE RJ-45 4x 10GB SFP+ Unclaimed Switch

Quick spec of MS250-48LP-HW-Ref

• SKU : MS250-48LP-HW
• Interfaces : 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x SFP+ 10GbE uplink • 2 x stacking ports
• Switching capacity : 176 Gbps
• Stacking Bandwidth : 80G (dual interface)
• Available PoE+ Power : 370 W
• Idle / Full Load Power : 46 / 480 W
• Power Supply Configuration : Hot-swappable
• Supported Power Supply : 2 x 640W PSU
• What’s included : 1 x Power Supply (MA-PWR-640WAC), Mounting screw kit
• Dimensions : 1.72 x 19.08 x 18.82” (4.38 x 48.46 x 47.8cm)
• Weight : 12.37 lb (5.61 kg)

MS250-48LP-HW-Ref Specification

• Interfaces :48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x SFP+ 10GbE uplink • 2 x stacking ports
• Switching capacity :176 Gbps
• Stacking Bandwidth :80G (dual interface)
• Available PoE+ Power :370 W
• Idle / Full Load Power :46 / 480 W
• Power Supply Configuration :Hot-swappable
• Supported Power Supply :2 x 640W PSU
• What’s included :1 x Power Supply (MA-PWR-640WAC), Mounting screw kit
• Dimensions :1.72 x 19.08 x 18.82” (4.38 x 48.46 x 47.8cm)
• Weight :12.37 lb (5.61 kg)
• Forwarding rate :127.98mpps
• Management :• Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control
• Remote Diagnostics :• Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search
• Stacking :• Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
• Power :• Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 5-1655W
• Layer 3 :• Static routing, OSFPv2 • Warm Spare (VRRP) • DHCP Relay, DHCP Server
• Mounting :• 1U Rack-mountable with included rack mount hardware • 2-post front mounting options available • Desktop-mountable with included feet
• Ethernet Switching Capabilities :• 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 32K
• Environment :• Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing • Variable speed fans
• Regulatory :• CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RCM (Australia/New Zealand) • RoHS
• Security :• Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs
• MTBF Ratings :339,906
