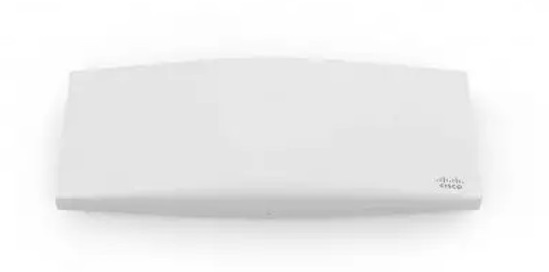

Cisco Meraki MR46-HW Quad-Radio 4x4:4 802.11ax WiFi 6 MU-MIMO Unclaimed WAP

MR46-HW Overview

Networking:

• Form Factor : External
• Connectivity Technology : Wireless
• Data Transfer Rate : 3.5 Gbps
• Line Coding Format : 1024 Qam, Ofdma
• Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac Wave 2, Ieee 802.11ax (wi-fi 6)
• Cloud-managed : Yes
• Frequency Band : 2.4 Ghz, 5 Ghz
• Status Indicators : Power, Boot State, Status
• Features : Firmware Upgradable, Wireless Intrusion Detection System (wids), Wi-fi Multimedia (wmm) Support, Quality Of Service (qos), Maximum Ratio Combining (mrc), Wireless Intrusion Prevention System (wips), Diffserv Code Point (dscp) Support, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (u-apsd), Su-mimo Technology, Aes Encryption, Guest Access, Opportunistic Key Caching (okc), 4x4:4 Mu-mimo Technology, Packet Aggregation, Orthogonal Frequency Division Multiple Access (ofdma), Target Wait Time (twt)
• Encryption Algorithm : Aes, Tls, Ttls, Tkip, Wpa, Wpa2-psk, Wpa2-enterprise, Wep, Eap-sim, Wpa3-enterprise, Wpa3-personal, Wpa3-enhanced Open
• Authentication Method : Ms-chap V.2, Extensible Authentication Protocol (eap)
• Compliant Standards : Ieee 802.1p, Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Ieee 802.1x, Ieee 802.11i, Ieee 802.11h, Ieee 802.11e, Ieee 802.11n, Ieee 802.11k, Ieee 802.3at, Ieee 802.11r, Ieee 802.11u, Ieee 802.11ac Wave 2, Ieee 802.11ax

  Antenna:
• Antenna : Internal

  Expansion / Connectivity:
• Interfaces : 1 X 1/2.5gbase-t (poe+) - Rj-45

  Miscellaneous:
• Included Accessories : Mounting Kit
• Compliant Standards : Csa, Vcci, Ices-003, En55024, Cispr 22, Fcc Part 15 B, Rss-102, Ul 2043, Rohs, Fcc Part 2, As/nzs 4268, Fcc Part 15 E, Fcc Cfr47 Part 15 C, En 62311, En 300 328, En 50385, Rss-247, En 301 489-1-17, En 62479, En 301 893, En 55032, As/nzs 2772, Cb 60950, Cb 62368, Ift, Nom-208, Ncc Lp0002

  Power:
• Power Over Ethernet (poe) Supported : Poe+
• Power Device : External Power Adapter
• Voltage Required : Dc 12 V (non-poe) / 42.5 - 57 V (poe+)
• Power Consumption Operational : 18 Watt

Datasheet: MR46-HW
