Cisco IW3702-2E-B-K9 IW 3700 Series Dual Band 802.11ac (US) Wireless AP

(No reviews yet) Write a Review

MPN:

IW3702-2E-B-K9

Condition:

Refurbished

Shipping:

Calculated at Checkout

Description
Contact

Description

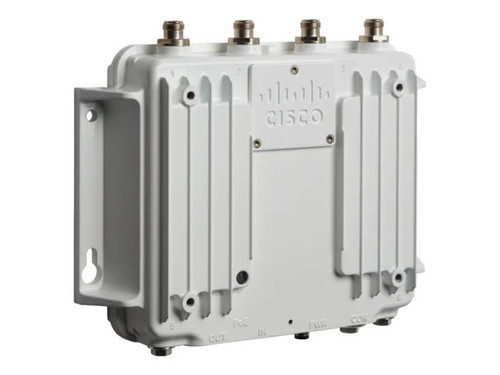

Cisco IW3702-2E-B-K9 IW 3700 Series Dual Band 802.11ac (US) Wireless AP

The Cisco IW3702-2E-B-K9 is part of the Cisco Industrial Wireless 3700 Series, designed for rugged environments and industrial applications. This access point is designed to withstand harsh environmental conditions and provide reliable wireless connectivity in industrial, mining, manufacturing, and other outdoor applications.

Model Number: IW3702-2E-B-K9
Device Type: Industrial Wireless Access Point
Form Factor: Wall or pole mountable, ruggedized for outdoor and industrial environments
Wireless Specifications
Wi-Fi Standards Supported:
802.11a/b/g/n/ac
Dual-band (2.4 GHz and 5 GHz) concurrent operation
MIMO: 3x3 MIMO with 3 spatial streams
Data Rate: Supports data rates up to 1.3 Gbps on the 5 GHz band (802.11ac)
Radio Frequency (RF) Outputs: 2 external antenna connectors (N-Type)
Antenna Configuration
Antenna Type: External antennas, supports multiple industrial antenna options
Number of Antenna Ports: 2 external N-type antenna connectors
Interface and Ports
Network Interfaces:
2 x 10/100/1000 Ethernet ports (RJ-45)
Console Port: 1 x RJ-45 for management
Power Specifications
Power Options:
Supports Power over Ethernet (PoE) 802.3af/at
DC power input (optional)
Maximum Power Consumption: 18.5W
Environmental Specifications
Operating Temperature Range: -40°C to +70°C (-40°F to 158°F)
Humidity: 10% to 95% non-condensing
Ingress Protection: IP67-rated, dust-tight, and protected against immersion
Vibration and Shock: Compliant with IEC 60068-2-6, 60068-2-27
Security and Management
Security Features:
WPA2, WPA3, 802.1X authentication
Support for Cisco TrustSec, Cisco Identity Services Engine (ISE)
Management:
Managed through Cisco Prime, Cisco DNA Center, or CLI (Command Line Interface)
Web-based GUI
Dimensions and Weight
Dimensions:
Height: 9.1 inches (23.0 cm)
Width: 9.5 inches (24.1 cm)
Depth: 2.5 inches (6.4 cm)
Weight: 9.5 lbs (4.3 kg)
Compliance and Certifications
Certifications: FCC, CE, IC, UL, and more for industrial deployments.
Part Number : IW3702-2E-B-K9
Condition : REF

More information on this Cisco IW3702-2E-B-K9 visit the data sheet link
