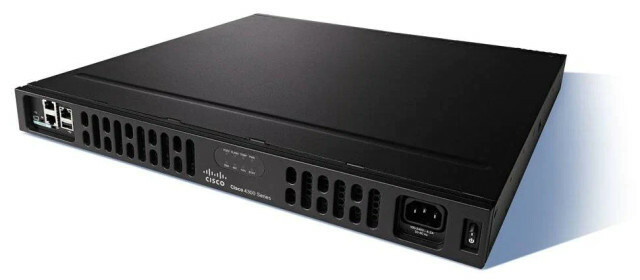

Cisco ISR4331-VSEC/K9 Integrated Services 4331 Voice-SEC Router

Quick spec of ISR4331-VSEC/K9-ref

• Product Code : ISR4331-VSEC/K9
• Aggregate Throughput : 100 Mbps to 300 Mbps
• Total onboard WAN or LAN 10/100/1000 ports : 3
• RJ-45-based ports : 2
• SFP-based ports : 2
• Enhanced service-module (SM-X) slot : 1
• NIM (Network Interface Modules) slots : 2
• Onboard ISC slot : 1
• Memory : 4 GB (default) / 16 GB (maximum)
• Flash Memory : 4 GB (default) / 16 GB (maximum)
• Power-supply options : Internal: AC and PoE
• Rack height : 1 RU
• Dimensions (H x W x D) : 44.45 x 438.15 x 438.15 mm
• Package Weight : 12.96 Kg

ISR4331-VSEC/K9-ref Specification

• Description :Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10s
• Aggregate Throughput :100 Mbps to 300 Mbps
• Total onboard WAN or LAN 10/100/1000 ports :3
• RJ-45-based ports :2
• SFP-based ports :2
• Enhanced service-module slots :1
• Doublewide service-module slots :0
• NIM slots :2
• OIR (all I/O modules) :Yes
• Onboard ISC slot :1
• Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) :4 GB
• Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) :16 GB
• Default memory DDR3 ECC DRAM (data plane) :NA
• Maximum memory DDR3 ECC DRAM (data plane) :NA
• Default memory DDR3 ECC DRAM (control/services plane) :NA
• Maximum memory DDR3 ECC DRAM (control/services plane) :NA
• Default flash memory :4 GB
• Maximum flash memory :16 GB
• External USB 2.0 slots (type A) :1
• USB console port -type B mini (up to 115.2 kbps) :1
• Serial console port - RJ45 (up to 115.2 kbps) :1
• Serial auxiliary port - RJ45 (up to 115.2 kbps) :1
• Power-supply options :Internal: AC and PoE
• Redundant power supply :N/A
• AC input voltage :100 to 240 VAC autoranging
• AC input frequency :47 to 63 Hz
• AC input current range, AC power supply (maximum) :3 to 1.3A
• AC input surge current :60 A peak and less than 5 Arms per half cycle
• Typical power (no modules) (watts) :42
• Maximum power with AC power supply (watts) :250
• Maximum power with PoE power supply (platform only) (watts) :530
• Maximum endpoint PoE power available from PoE power supply (watts) :250
