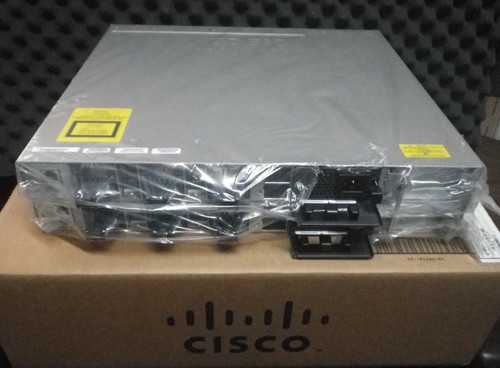

Cisco Catalyst WS-C3850-12XS-E 12 Port 10G Fiber Switch IP Services
(No reviews yet)
Write a Review
- MPN:
- WS-C3850-12XS-E
- Condition:
- Refurbished
- Shipping:
- Free Shipping
Frequently bought together:
Description
Cisco WS-C3850-12XS-E Catalyst 3850 12x 10GB SFP+ 1x Module Slot Switch
Overview
WS-C3850-12XS-E switch provides 12 ports 10Gbps SFP+ connection with upgradeable IP services image and build in wireless controller provide fully convergence between wired and wireless on a single platform. It only supports 4 × 10 Gigabit Ethernet network module uplinks option.
Integrated wireless controller capability with:
◦ Up to 40G of wireless capacity per switch (48-port RJ45 models)
◦ Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
● 24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with Energy-Efficient Ethernet (EEE)
● 24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with Energy-Efficient Ethernet (EEE)
● 12- and 24-port 1 Gigabit Ethernet SFP-based models
● 12- and 24-port 1/10 Gigabit Ethernet SFP+-based models
Specifications
- Product Code : WS-C3850-12XS-E
- Enclosure Type : 1 RU
- Feature Set : IP Service
- Network SFP uplink module selection : C3850-NM-4-10G
- Ports : 12 x 10/100/1000 10G SFP+ Optical ports
- Maximum stacking number : 9
- Stack bandwidth : 480 Gbps
- Forwarding Performance : 227.28Mpps
- Switching Capacity : 320Gbps
- RAM : 4 GB
- Flash Memory : 4 GB
- Dimensions : 44.5 cm x 45.0 cm x 4.45 cm
- model info: :WS-C3850-12XS-E
- enclosure type :Rack-mountable - 1U
- Ports :12 x SFP+ ports
- Network management Interface :
- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections
- Available PoE Power :None
- Switching Capacity :320Gbps
- Maximum stacking number :9
- Stack Bandwidth :480Gbps
- Forwarding Performance :227.28Mpps
- FNF entries :48,000 flows
- Maximum VLANs IDs :1,000
- MAC Address Table Size :32K
- CPU :Multicore CPU
- RAM :4 G
- Flash Memory :4 G
- Number of AP per switch/stack :100
- Number of wireless clients per switch/stack :2000
- Total number of WLANs per switch :64
- Wireless bandwidth per switch :up to 20Gbps
- Supported Aironet AP series :3600, 3500, 2600, 1600, 1260, 1140, 1040
- Console ports :USB (Type-B), Ethernet (RJ-45)
- Expansion Slot(s) :1 network module slot and 1 power redundant slot
- Network Modules Selection :
- C3850-NM-4-1G: 4 x 1G uplinks network module
- C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
- Stacking cable :
- STACK-T1-50CM StackWise stacking cable with a 0.5 m length
- STACK-T1-1M StackWise stacking cable with a 1.0 m length
- STACK-T1-3M StackWise stacking cable with a 3.0 m length
- Stack Power Cable (recommended) :
- CAB-SPWR-30CM stack power cable with a 30CM length
- CAB-SPWR-150CM stack power cable with a 150CM length
- Power supply :PWR-C1-350WAC
- Power Device :Power supply - redundant - plug-in module
- Power Redundancy :optional
- Voltage range (Auto) :100V-240V
- Power Consumption of standalone(in Watts) :109.75 (Max)
- Width :17.5 Inches (44.5 cm)
- Depth :17.7 Inches (45.0 cm)
- Height :1.75 Inches (4.45 cm)
- Weight :12.9 Pounds (5.8 Kg)
- Rack Mounting Kit :optional
- MTBF in hours :371,440
- Compliant Standards :
- IEEE 802.1D Spanning Tree Protoco
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1X-Rev
- IEEE 802.11
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
- System software :IOS IP Services
- EnergyWise license :ENERGY-MGMT, ENERGY-MGT-100-K9
- Access Point Licenses :
- L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
- L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
- LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
- LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
- Features :
- RPS Support
- Jumbo Frames
- VLANS
- Voice Vlan
- VTPv2
- CDPv2
- LLDP
- 802.3ad LACP and PAgP
- PVST/PVST+
- 802.1W/802.1S
- Port Fast/Uplink Fast
- Dynamic Trunking Protocol (DTP)
- port CoS Trust and Override
- Trusted Boundary
- ACL Classification
- ingress Policing
- Auto QoS
- Per VLAN policies
- 802.1p queues
- Scheduling
- Priority Queuing
- Configure CoS Priority Queues
- Configure CoS Priority Queues
- Configure Queue Weights
- Configure Buffers and Thresholds
- Class & Policy Maps
- Modify CoS and DSCP Mapping
- Weighted Tail Drop
- IGMPv1,v2,v3 and MLDv1, v2
- DHCP server
- DSCP transparency
- HSRP, VRRP, BLGP
- RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4
- VRF-lite
- PIM-SM/DM, PIM sparse-dense mode, SSM
- Flexible Netflow
- Advanced Network security :
- Port security
- DHCP snooping
- Dynamic ARP inspection (DAI)
- IP source guard
- The Unicast Reverse Path Forwarding (uRPF)
- Bidirectional data support on a SPAN
- User authentication
- Private VLAN
- Router and VLAN ACLs
- complete identity and security
- Multidomain authentication
- MAC address notification
- IGMP filtering
- Cisco security VLAN ACL
- Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
- Port-based ACLs
- TrustSec SXP
- IEEE 802.1ae
- TACACS+ and RADIUS authentication
- Cisco standard and extended IP security router ACLs
- Bridge protocol data unit (BPDU) Guard
- Spanning Tree Root Guard (STRG)
- Wireless end-to-end security
- Management :
- BRIDGE-MIB
- CISCO-AUTH-FRAMEWORK-MIB
- CISCO-BGP4-MIB, BGP4-MIB
- CISCO-BRIDGE-EXT-MIB
- CISCO-BULK-FILE-MIB
- CISCO-CABLE-DIAG-MIB
- CISCO-CALLHOME-MIB
- CISCO-CEF-MIB
- CISCO-CIRCUIT-INTERFACE-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-CONTEXT-MAPPING-MIB
- CISCO-DEVICE-LOCATION-MIB
- CISCO-DHCP-SNOOPING-MIB
- CISCO-EIGRP-MIB
- CISCO-EMBEDDED-EVENT-MGR-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENTITY-SENSOR-MIB
- ENTITY-MIB
- CISCO-ERR-DISABLE-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-FLOW-MONITOR-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-HSRP-MIB
- CISCO-IETF-ISIS-MIB
- CISCO-IF-EXTENSION-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-IP-CBR-METRICS-MIB
- CISCO-IPMROUTE-MIB
- CISCO-IP-STAT-MIB
- CISCO-IP-URPF-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-LAG-MIB
- CISCO-LICENSE-MGMT-MIB
- CISCO-MAC-AUTH-BYPASS-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MDI-METRICS-MIB
- CISCO-FLASH-MIB
- CISCO-OSPF-MIB
- CISCO-OSPF-TRAP-MIB
- CISCO-PAE-MIB
- CISCO-PAGP-MIB
- CISCO-PIM-MIB
- CISCO-PING-MIB
- CISCO-PORT-QOS-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- CISCO-POWER-ETHERNET-EXT-MIB
- CISCO-PRIVATE-VLAN-MIB
- CISCO-PROCESS-MIB
- CISCO-PRODUCTS-MIB
- CISCO-RF-MIB
- CISCO-RTP-METRICS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMART-INSTALL-MIB
- CISCO-SNMP-TARGET-EXT-MIB
- CISCO-STACKMAKER-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-UDLDP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- EtherLike-MIB
- HC-RMON-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- IF-MIB
- IGMP-MIB
- IGMP-STD-MIB
- IP-FORWARD-MIB
- IP-MIB
- IPMROUTE-STD-MIB
- LLDP-EXT-MED-MIB
- LLDP-MIB
- NOTIFICATION-LOG-MIB
- OLD-CISCO-MEMORY-MIB
- CISCO-CDP-MIB
- POWER-ETHERNET-MIB
- RMON2-MIB
- RMON-MIB
- SNMP-COMMUNITY-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-PROXY-MIB
- SNMP-TARGET-MIB
- SNMP-USM-MIB
- SNMPv2-MIB
- SNMP-VIEW-BASED-ACM-MIB
- TCP-MIB
- UDP-MIB
- CISCO-IMAGE-MIB
- CISCO-STACKWISE-MIB
- AIRESPMACE-WIRELESS-MIB
- CISCO-LWAPP-IDS-MIB
- CISCO-LWAPP-AP-MIB
- CISCO-LWAPP-CCX-RM-MIB
- CISCO-LWAPP-CLIENT-ROAMING-MIB
- CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
- CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
- CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
- CISCO-LWAPP-DOT11-CLIENT-MIB
- CISCO-LWAPP-DOT11-MIB
- CISCO-LWAPP-DOWNLOAD-MIB
- CISCO-LWAPP-LINKTEST-MIB
- CISCO-LWAPP-MFP-MIB
- CISCO-LWAPP-MOBILITY-EXT-MIB
- CISCO-LWAPP-QOS-MIB
- CISCO-LWAPP-REAP-MIB
- CISCO-LWAPP-ROGUE-MIB
- CISCO-LWAPP-RRM-MIB
- CISCO-LWAPP-SI-MIB
- CISCO-LWAPP-TSM-MIB
- CISCO-LWAPP-WLAN-MIB
- CISCO-LWAPP-WLAN-SECURITY-MIB
- Technical Support and Services :
- Cisco SMARTnet Service
- Cisco Smart Foundation Service
- Cisco SP Base Service
- Cisco Focused Technical Support Services
- Operating temperature up to 5000 ft (1500 m) :23ºF to 113ºF (-5ºC to +45ºC)
- Operating temperature up to 10,000 ft (3000 m) :23ºF to 104ºF (-5ºC to +40ºC)
- Short-term exception at sealevel with single fan failure :23ºF to 113ºF (-5ºC to +45ºC)
- Short-term exception up to 5000 feet (1500 m) :23ºF to 122ºF (-5ºC to 50ºC)
- Short-term exception up to 10,000 feet (3000 m) :23ºF to 113ºF (-5ºC to 45ºC)
- Operating temperature up to 6000 ft (1800 m) :23ºF to 113ºF (-5ºC to +45ºC)
- Operating temperature up to 10,000 ft (3000 m) :23ºF to 104ºF (-5ºC to +40ºC)
- Operating temperature up to 13,000 ft (4000m) :23ºF to 95ºF (-5ºC to 35ºC)
- Short-term exception up to 6,000 feet (1800 m) :23ºF to 131ºF (-5ºC to +55ºC)
- Short-term exception up to 10,000 feet (3000 m) :23ºF to 122ºF (-5ºC to +50ºC)
- Short-term exception up to 13,000 feet (4000 m) :23ºF to 113ºF (-5ºC to +45ºC)
- Short-term exception at sealevel with single fan failure :23ºF to 113ºF (-5ºC to +45º)
- Storage environment : -40ºF to 160ºF (-40ºC to 70ºC)
- Operating altitude :Up to 13,000 Feet (Up to 4000 Meters)
- Storage altitude :Up to 15,000 Feet (Up to 4573 Meters)
- Operating relative humidity :10% to 95% noncondensing
- Storage relative humidity :10% to 95% noncondensing
