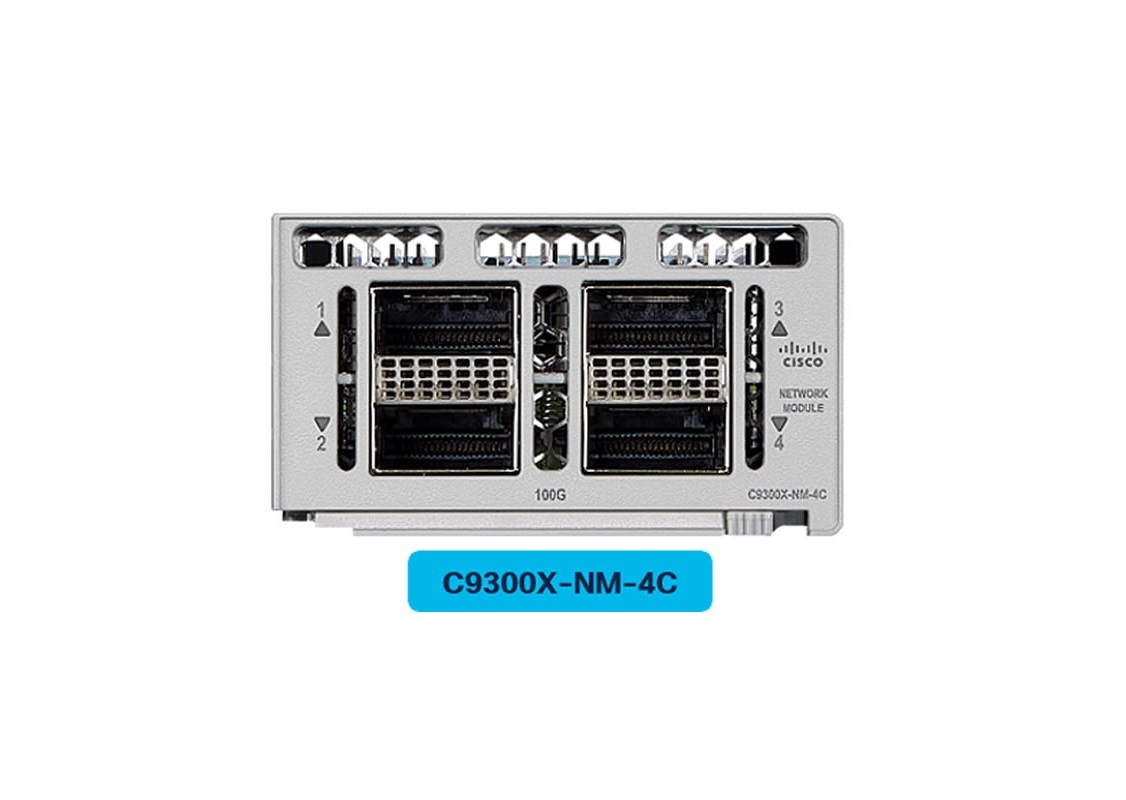

The Cisco C9300X-NM-4C is a network module designed for the Cisco Catalyst 9300 Series switches.

Port Configuration:

• • The module offers 4 x 100G/40G QSFP28 ports, providing up to 400 Gbps of bandwidth capacity per module.
  • It enables simple migration from 40G to 100G fiber connectivity without requiring upgrades.

Field-Replaceable:

• • The C9300X-NM-4C is field-replaceable, allowing for easy maintenance and upgrades.

Optimized for High-Speed Core Connectivity:

• • It is optimized for ultra-high-speed 100G core connectivity within the network.

Secure Tunnel Connectivity:

• • The C9300X-NM-4C enables secure connections to Secure Internet Gateway, Cloud Service Providers, and Site-to-Site connectivity using IPsec tunnel with AES-256 Encryption and speeds up to 100G.

Application Hosting and Future-Ready:

• • The Catalyst 9300 Series switches, including the C9300X-NM-4C, are ready for the future with an x86 CPU architecture and more memory.
  • They can host containers and run third-party applications and scripts natively within the switch.

C9300X-NM-4C Quick Spec

CISCO C9300X-NM-4C Catalyst 9300 4 X 100g/40g Dual Rate Qsfp Network Module :

Key Features :

• Device Type : Expansion Module

  Networking :
• Form Factor : Plug-in Module
• Connectivity Technology : Wired
• Data Link Protocol : 40 Gigabit Ethernet, 100 Gigabit Ethernet

  Expansion / Connectivity :
• Interfaces : 4 X 40gb Ethernet/100gb Ethernet - Qsfp+/qsfp28

  Compatibility Information :
  Designed For :
• P/n: C9300x-24y-10a, C9300x-24y-10e, C9300x-24y-1a, C9300x-24y-1e, C9300x-24y-a, C9300x-24y-a=, C9300x-24y-e, C9300x-24y-e=, C9300x-24y-edu, C9300x-48hx-10a, C9300x-48hx-10e, C9300x-48hx-1a, C9300x-48hx-1e, C9300x-48hx-a, C9300x-48hx-e, C9300x-48hx-edu, C9300x-48hxn-a, C9300x-48hxn-e, C9300x-48tx-10a, C9300x-48tx-10e, C9300x-48tx-1a, C9300x-48tx-1e, C9300x-48tx-a, C9300x-48tx-e, C9300x-48tx-edu
