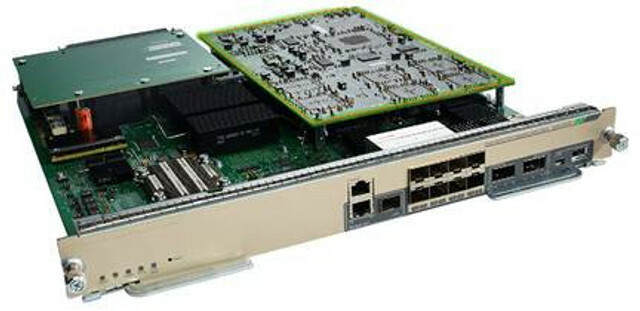

Cisco C6800-32P10G-XL Catalyst 6800 32x 10GB SFP+ Module w/ Dual DFC4-XL

Product overview

The Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the
Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on
campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit
Ethernet Fiber Modules.
The modules support hardware-based multicast replication, Quality of Service (QoS), Access Control Lists (ACLs), jumbo
frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. All three
share a common ASIC architecture and support the same set of features in hardware. They support Small Form-Factor
Pluggable (SFP/SFP+), 10/100/1000M GLC-T (1G copper SFP) transceivers, and 100M FX.

The modules consist of port groups of eight ports each. The 32-port and 16-port modules can operate in either of two
modes: 1) oversubscribed mode (default), which provides for maximum port density, using all of the ports with 2:1
oversubscription; and 2) performance mode, which uses half of the ports, enabling line rates and double the port buffer
size. The mode of operation can be changed for each eight-port port-group (mixed mode), and is described in more detail
in the following sections. The eight-port 10-Gigabit Ethernet Module always operates in performance mode.

The modules are based on the WS-X6904-40G module and provide the same level of advanced enterprise features and
large table sizes that have proven essential to successful operation as a campus aggregation or core switch. They include
hardware features such as Virtual Switching System (VSS), Instant Access (IA), Location ID Separation Protocol (LISP),
Security Group Tagging (SGT) and Access Control (SGACL), MACsec (802.1ae), traffic shaping, and Hierarchical Quality of
Service (HQoS), among others. The line cards are also the first to launch with front-facing passive UHF RFID technology,
providing the latest Auto-ID capabilities for asset management.

Specifications:

Port Configuration:

• • • This module features 32 ports for 10-Gigabit Ethernet connectivity.
    • It utilizes SFP+ (Small Form-Factor Pluggable) transceivers.

Performance and Capacity:

• • • Switching Capacity: The module provides a total switching capacity of 160 Gbit/s.
    • Buffer Size per Port: Each port has a buffer size of 2.5 MB.

Advanced Features:

• • • MAC Address Table: Supports up to 128,000 entries.
    • Enterprise Features: Includes features like Virtual Switching System (VSS), Instant Access (IA), Location ID Separation Protocol (LISP), Security Group Tagging (SGT), Access Control (SGACL), MACsec (802.1ae), traffic shaping, and Hierarchical Quality of Service (HQoS).

Compatibility:

• • • Designed for use with Cisco Catalyst 6800 switches.
    • Management platforms supported include ETHERLIKE-MIB (RFC 1643), IF-MIB (RFC 1573), Bridge MIB (RFC 1493), and CISCO-STACK-MIB.

Power Consumption:

• • • Typical power consumption: 587.6 W.

C6800-32P10G-XL Datasheet
