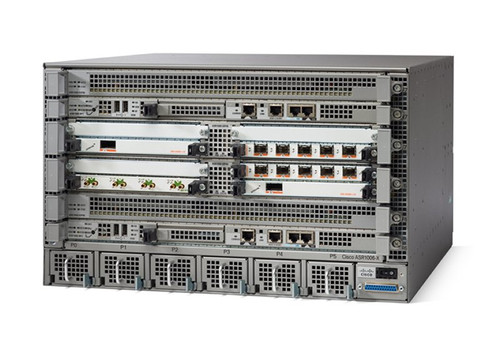

Cisco ASR1006-X ASR 1000 Series 14x Slot (8x SPA 4x EPA 2x ESP) Router

Quick spec of ASR1006-X

• Part Number : ASR1006-X
• Route Processor : 2 route-processor slots
• Cisco ASR 1000 Series ESP : 2 ESP slots
• Ethernet Port Adapters : 4 EPA slots
• Shared Port Adapters : 8 SPA slots
• Number of SIPs or Ethernet line cards supported : 2
• Default Memory : 8-GB DRAM RP2 8-GB DRAM RP3
• Dimension : Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm)
• Weight : 36.5 lb empty

ASR1006-X Specification

• Dimension :Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm)
• Default memory :8-GB DRAM RP2 8-GB DRAM RP3
• Number of SIPs or Ethernet line cards supported :2
• Shared port adapters :8 SPA slots
• Ethernet port adapters :4 EPA slots
• Cisco ASR 1000 Series ESP :2 ESP slots
• Route processor :2 route-processor slots
• Redundancy :Hardware: Yes
• Built-in Gigabit Ethernet ports :0
• Built-in 10 Gigabit Ethernet port :No
• Network interface module :No
• ESP support :Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100)
• ESP bandwidth :40 to 100 Gbps
• ESP memory :Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAM Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM
• SIPs and Ethernet line cards :Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)
• Embedded hardware-based encryption :Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput
• Minimum Cisco IOS XE Software release :Cisco IOS XE Software Release 3.16.0
• Rack-mounting :Yes: 19-inch
• Wall-mounting :No
• External USB flash memory :1-GB USB flash-memory support
• Redundant power supply :Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC Note: A mix of AC and DC power supplies is not supported.
• Power input :Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal)
• Power consumption :
  •   Maximum (DC): 4600W
  •   Maximum (AC): 4500W
• Airflow :Front-to-back
• Operating temperature (nominal) :Same as for Cisco ASR 1001-X
• Operating temperature (short-term) :Same as for Cisco ASR 1001-X
• Operating humidity (nominal) (relative humidity) :Same as for Cisco ASR 1001-X
• Operating humidity (short-term) :Same as for Cisco ASR 1001-X
• Storage temperature :Same as for Cisco ASR 1001-X
• Storage humidity (relative humidity) :Same as for Cisco ASR 1001-X
• Operating altitude :Same as for Cisco ASR 1001-X
• Network Equipment Building Standards (NEBS) :GR-1089 and GR-63
• EMC standards :Same as for Cisco ASR 1001-X
• Safety Standard :UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1
