C9300-48UXM-E CISCO Catalyst/PWR-C1-1100WAC-P/STACK-T1-50CM Switch life time warranty

(No reviews yet) Write a Review
MPN:
C9300-48UXM-E
Condition:
New
Shipping:
Calculated at Checkout
  • Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
  • Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
$2,999.00
REQUEST A QUOTE
Frequently bought together:

Description

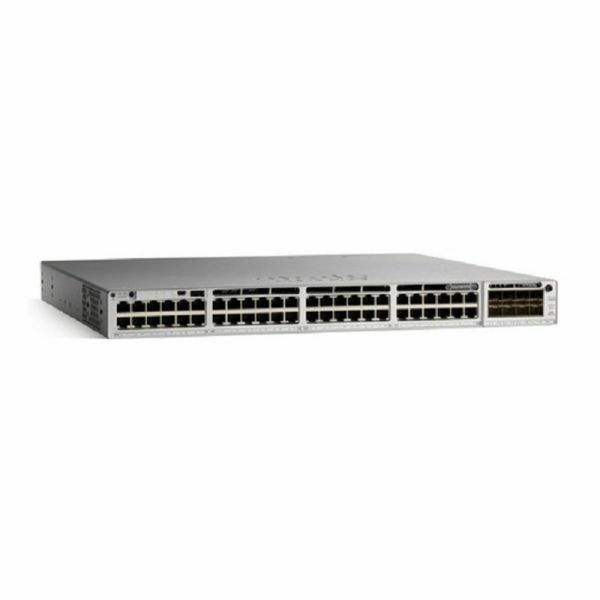

NEW Cisco C9300-48UXM-E Catalyst 9300 48x MultiGB UPoE RJ-45 1x Mod Slot Switch

C9300-48UXM-E- New Overview

C9300-48UXM-E is the Catalyst 9300 switch, providing 48-port 2.5G (12 mGig) UPOE, and Network Essentials. Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

Quick spec of C9300-48UXM-E- New

  • Model : C9300-48UXM-E
  • Total 10/100/1000 or Multigigabit copper ports : 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps)
  • Default AC power supply : 1100W AC
  • Available PoE power : 490W
  • Cisco StackWise-480 : Yes
  • Cisco StackPower : Yes
  • Switching capacity : 580 Gbps
  • Stacking bandwidth : 480 Gbps
  • Total number of MAC addresses : 32,000
  • DRAM : 8 GB
  • Flash : 16 GB
  • Dimensions (H x W x D) Inches : Chassis only: 1.73 x 17.5 x 19.1 W/ Default Power Supply: 1.73 x 17.5 x 22.2 W/ 1100W Power Supply: 1.73 x 17.5 x 22.2

C9300-48UXM-E- New Specification

  • Device Type:Switch - 48 ports - L3 - managed - stackable
  • Enclosure Type:Rack-mountable 1U
  • Subtype:2.5 Gigabit Ethernet
  • Ports:36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE)
  • Power Over Ethernet (PoE):UPOE
  • PoE Budget:490 W
  • Performance:Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 431.54 Mpps
  • Capacity:IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
  • MAC Address Table Size:32000 entries
  • Jumbo Frame Support:9198 bytes
  • Routing Protocol:OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
  • Remote Management Protocol:SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
  • Encryption Algorithm:128-bit AES
  • Features:Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
  • Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
  • RAM:8 GB
  • Flash Memory:16 GB
  • Status Indicators:Status
  • Interfaces:36 x 2.5Gbit LAN RJ-45 UPOE ¦ 12 x 1/2.5/5/10GBase-T UPOE ¦ 1 x USB 2.0
  • Expansion Slots:1 (total) / 1 (free) x expansion slot
  • Power Device:Internal power supply - hot-plug
  • Installed Qty:1 (installed) / 2 (max)
  • Power Redundancy:Optional
  • Power Provided:1100 Watt
  • Voltage Required:AC 120/230 V (50 - 60 Hz)
  • MTBF:202,160 hours
  • Compliant Standards:CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A
  • Width:17.5 in
  • Depth:18.5 in
  • Height:1.7 in
  • Service & Support:Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
  • Min Operating Temperature:23 °F
  • Max Operating Temperature:113 °F
  • Humidity Range Operating:5 - 90% (non-condensing)
  • Min Storage Temperature:158 °F
  • Max Storage Temperature:104 °F
  • Humidity Range Storage:5 - 90% (non-condensing)

C9300-48UXM-E Datasheet
